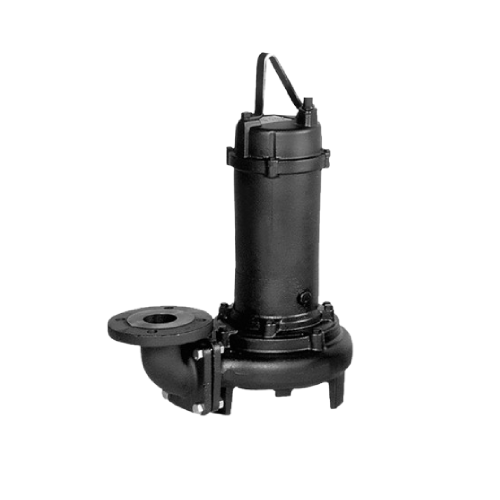

EBARA DL Series เป็น ปั๊มน้ำเสีย แบบปั๊มจุ่มเหล็กหล่อที่ออกแบบมาเพื่อการจัดการน้ำเสียที่มีของแข็งและเส้นใยปะปน ด้วยใบพัดที่หลากหลายและโครงสร้างที่ทนทาน จึงเหมาะสำหรับการใช้งานในระบบบำบัดน้ำเสียและอุตสาหกรรมต่างๆ รวมถึงงานที่ต้องใช้ pump น้ำเสีย ที่มีประสิทธิภาพสูง
ปั๊มจุ่มน้ำเสีย EBARA DL Series เป็นปั๊มจุ่มเหล็กหล่อคุณภาพสูงที่ถูกออกแบบมาเพื่อการจัดการน้ำเสียที่มีของแข็งและเส้นใยปะปน เหมาะทั้งงานในครัวเรือน โรงงานอุตสาหกรรม และระบบบำบัดน้ำเสีย ด้วยการใช้ใบพัดแบบเปิดสองช่อง (Open Double-Channel Impeller) และใบพัดกึ่งเปิดป้องกันการอุดตัน (Semi-Open Anti-Clogging Impeller) จึงช่วยเพิ่มประสิทธิภาพในการสูบน้ำและลดปัญหาการอุดตัน
| Standard | Optional | |||||||
|---|---|---|---|---|---|---|---|---|
| Scope | Discharge | 65, 80, 200 – 300 mm | ||||||
| Motor Power | 1.5, 5.5 – 22 kW (3phase) | |||||||
| Performance | Capacity : 0.07 – 12 m³/min Head : 3 – 39 m. |
|||||||
| Liquid | Type | Sewage | ||||||
| Maximum temperature | 40° C (Manual and A Type) 32° C (J’ Type) | |||||||
| Max. solids | refer to table below | |||||||
| Submergence | Maximum | 8 m | ||||||
| Minimum | Refer to low water level (L.W.L.) in dimensions. | |||||||
| Construction | Impeller | Non-clog semi-open | ||||||
| Mechanical Seal |
Oil lubricated, double mechanical seal (single spring 1.5 kW) (tandem spring 5.5 to 22 kW) |
|||||||
| Materials | Casing | Cast Iron | ||||||
| Impeller | Cast Iron | |||||||
| Suction Cover | Cast Iron | |||||||
| Shaft | 403 Stainless Steel | |||||||
| Motor Frame | Cast Iron | |||||||
| Fasteners | 304 Stainless Steel | |||||||
| Mechanical Seal |
Upper Faces : Carbon / Ceramic Lower Faces : Silicon Carbide / Silicon Carbide Lubricating Oil: Turbine Oil VG32 (SAE10W/20W) |
|||||||
| Motor | Type | Air filled dry submersible, IP68, Class F insulation | ||||||
| Nominal Speed |
4 pole 1450 rpm | |||||||
| Applicable Voltages |
380/400/415 volts 3 phase 50 Hz | |||||||
| Starting | DOL (up to 7.5 kW) Star-Delta (11 to 22 kW) | |||||||
| Protection | In built overload protection (up to 7.5 kW) Miniature thermal protector (11 to 22 kW) |
|||||||
| Bearings | Pre lubricated sealed ball bearings | |||||||
| Cable | Length | 10m | ||||||
| Accessories | Flange | Discharge elbow with screwed companion flange | ||||||
| Quick Discharge Connector (QDC) | ||||||||
| Discharge | 65 Ø | 80 Ø | 200 Ø | 250 Ø | 300 Ø | |||
| Motor kW | 1.5 | 1.5 | All | All | All | |||
| Max. Diameter of Solids | 40 mm | 46 mm | 75~76 mm | 79 mm | 88 mm | |||
| Max. Length of Fibers | 195 mm | 240 mm | 500 mm | 550 mm | 600 mm | |||
