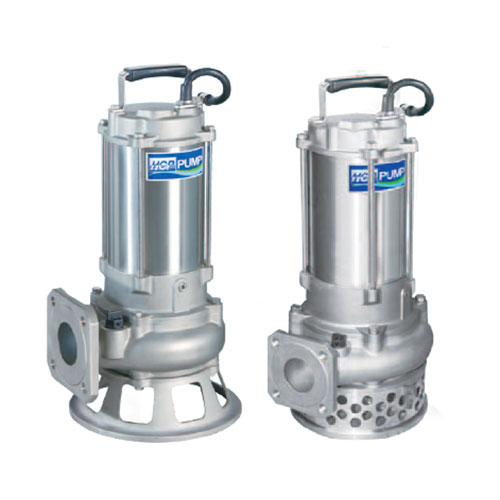

ปั๊มจุ่ม หรือปั๊มแช่ ยี่ห้อ HCP รุ่น SF/SA ตัวปั๊มเป็นสแตนเลสเหมาะกับน้ำเสียที่มีกรดอ่อน สำหรับอุตสาหกรรมและบำบัดน้ำเสีย
ปั๊มจุ่ม (submersible Pump) HCP SF/SA Series ปั๊มสูบน้ำเสียหรือเครื่องสูบน้ำเสียชนิดสแตนเลส เหมาะสำหรับเป็นน้ำเสียสำหรับสูบน้ำที่มีกรดอ่อนๆ
คุณสมบัติ
การใช้งาน
อุปกรณ์ :
ข้อต่องอ / GRS – GUIDE RAIL SYSTEMS
| Item | Description | |
| Limits of Use |
Liquid Temp. | 0 ̴ 40°C (32 ~ 104°F) |
| Applications | Corrosive·Food·Processing Liquids | |
| Type | Frequency | 50Hz |
| Motor | 2P(3600rpm)·Dry Motor | |
| Insulation | Class B (0.5 ~ 3HP)·Class F (5 ~ 15HP) | |
| Protection | IP68 | |
| Protector | Auto-cut (1HP 1Ø / 0.5 ~ 3Ø) Thermal (0.5HP 1Ø / 15HP 3Ø) |
|
| Bearing | Ball type | |
| M.seal | Double M.seals | |
| Impeller | Semi-open | |
| Material | Upper Cover | SCS14 |
| Motor Frame | SUS316 | |
| Shaft | SUS316(0.5 ~ 10HP)·SUS630(15HP) | |
| M.seal | CV/CE & SiC/SiC | |
| O-ring | Viton | |
| Casing | SCS14 | |
| Impeller | SCS14 | |
| Cable | VCT or H07RN-F SJOW/SOW | |
| Optional | Pump can be customized to fit specifications | |
| Model | Output HP (kW) |
Discharge Inch (mm) |
Phase Ø |
Start Method |
Head m |
Standard | Solid Passage mm |
weight kg | Dimensions mm | ||||||
| m³/min | m³/h | 10Ø | 3Ø | A | B | C | D | ||||||||

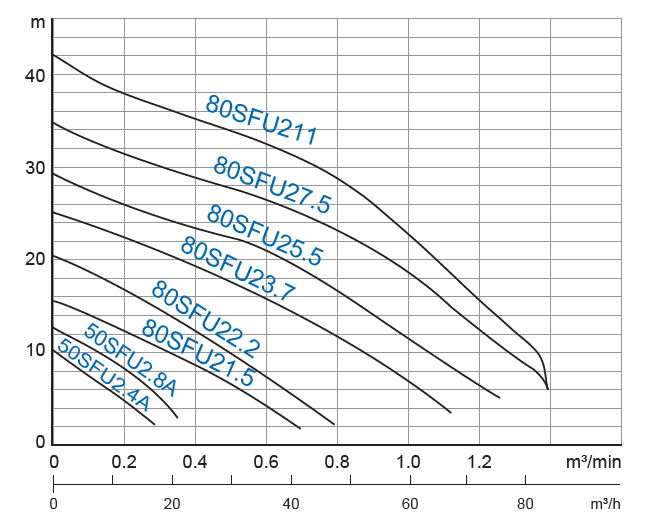

| U Type | HCP 50SFU2.4A | 0.5(0.4) | 2″(50) | 1 | Capacitor | 6 | 0.15 | 9 | 35 | 15 | 14 | 237 | – | 153 | 433 |
| 3 | Direct | ||||||||||||||
| HCP 50SFU2.8A | 1(0.75) | 2″(50) | 1 | Capacitor | 8 | 0.2 | 12 | 35 | 16 | 15 | 237 | – | 153 | 433 | |
| 3 | Direct | ||||||||||||||
| HCP 80SFU21.5 | 2(1.5) | 3″(80) | 3 | Direct | 8.5 | 0.4 | 24 | 50 | – | 26.5 | 402 | 260 | 202 | 517 | |
| HCP 80SFU22.2 | 3(2.2) | 3″(80) | 3 | Direct | 13 | 0.4 | 24 | 50 | – | 29 | 402 | 260 | 202 | 517 | |
| HCP 80SFU23.7 | 5(3.7) | 3″(80) | 3 | Direct | 17.5 | 0.5 | 30 | 50 | – | 40 | 476 | 286 | 222 | 561 | |
| HCP 80SFU25.5 | 7.5(5.5) | 3″(80) | 3 | Direct | 21 | 0.6 | 36 | 50 | – | 61 | 499 | 309 | 258 | 657 | |
| HCP 80SFU27.5 | 10(7.5) | 3″(80) | 3 | Direct | 26 | 0.6 | 36 | 50 | – | 67 | 499 | 309 | 258 | 657 | |
| HCP 80SFU211 | 15(11) | 3″(80) | 3 | S-D | 33 | 0.6 | 36 | 50 | – | 76 | 499 | 309 | 258 | 697 | |

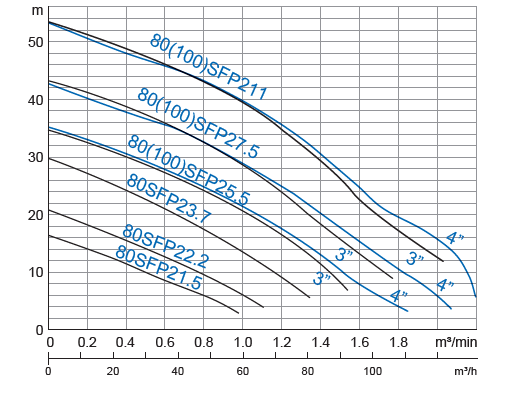

| P Type | HCP 80SFP21.5 | 2(1.5) | 3″(80) | 3 | Direct | 8.5 | 0.6 | 36 | 35 | – | 28.5 | 417 | 275 | 260 | 521 |
| HCP 80SFUP22.2 | 3(2.2) | 3″(80) | 3 | Direct | 13 | 0.6 | 36 | 35 | – | 31.5 | 417 | 275 | 260 | 521 | |
| HCP 80SFP23.7 | 5(3.7) | 3″(80) | 3 | Direct | 20.5 | 0.6 | 36 | 32 | – | 43 | 495 | 305 | 290 | 568 | |
| HCP 80(100)SFP25.5 | 7.5(5.5) | 3″(80) | 3 | Direct | 28 | 0.6 | 36 | 30 | – | 67 | 563 | 373 | 345 | 684 | |
| 4″(100) | 21.5 | 0.1 | 60 | 591 | |||||||||||
| HCP 80(100)SFP27.5 | 10(7.5) | 3″(80) | 3 | Direct | 35.5 | 0.6 | 36 | 30 | – | 73 | 563 | 373 | 345 | 684 | |
| 4″(100) | 29 | 0.1 | 60 | 591 | |||||||||||
| HCP 80(100)SFp211 | 15(11) | 3″(80) | 3 | S-D | 46 | 0.6 | 36 | 30 | – | 82 | 563 | 373 | 345 | 724 | |
| 4″(100) | 39.5 | 0.1 | 60 | 591 | |||||||||||
