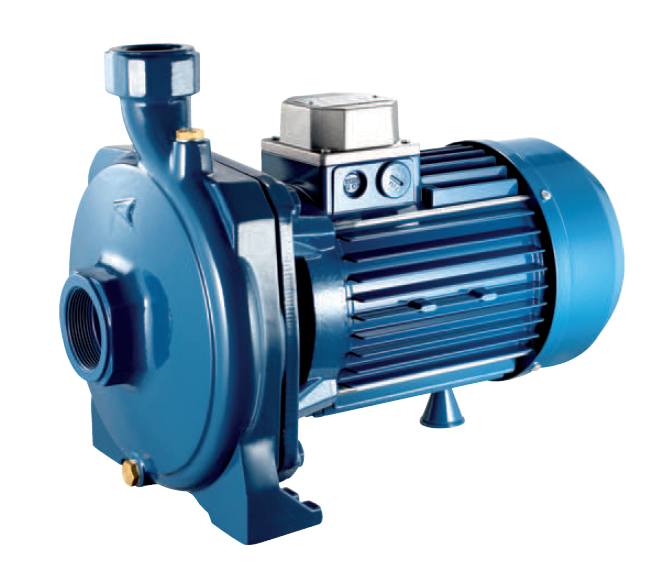

ปั๊มน้ำหอยโข่ง Foras รุ่น KM 400-500 ตัวปั๊มทำจากเหล็กหล่อคุณภาพสูง ป้องกันสนิม ใบพัดผลิตจากทองเหลืองไม่เป็นสนิม เหมาะกับการใช้งานที่หลากหลาย สินค้ามีความทนทานในการใช้งาน
การประยุกต์ใช้งาน
คุณสมบัติ
ระบบไฟ
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa |
| Motor bracket | cast iron |
| Soporte motor | fundicion |
| Support moteur | fonte |
| Girante | ottone |
| Impeller | brass |
| Rodete | laton |
| Turbine | laiton |
| Tenuta meccanica | ceramica-grafite |
| Mechanical seal | ceramic-graphite |
| Sello mecanico | ceramica-grafito |
| Garniture mecanique | ceramique-graphite |
| Albero motore | acciaio AISI 303 |
| Motor shaft | stainless steel AISI 303 |
| Eje motor | acero AISI 303 |
| Arbre moteur | acier AISI 303 |
| Temperatura del liquido | |
| Liquid temperature | |
| 0 – 90 °C | |
| Temperatura del liquido | |
| Temperature du liquide | |
| Pressione di esercizio | |
| Operating pressure | max 8 bar |
| Presion de trabajo | |
| Pression de fonctionnement | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | 3- 230/400V-50Hz |
| 2 pole induction motor | 1-230V-50Hz |
| Motor de 2 polos a inducción | |
| Moteur a induction a 2 poles | |
| Classe di isolamento | |
| Insulation class | F |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | |
| Protection degree | IP44 |
| Grado de proteccion | |
| Protection | |

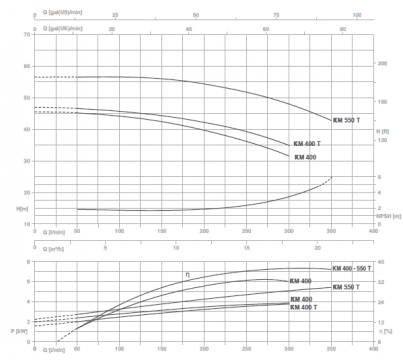

| Type | P2 | P1 (kW) | AMPERE | Q (m3/h – l/min) | |||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | ||||
| HP | kW | 1~ | 3~ | 1x230V 50 Hz | 3x400V 50 Hz | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | ||
| H(m) | |||||||||||||||
| KM 400 | 4 | 3 | 4 | 17.8 | 45.3 | 45.2 | 44.7 | 42.9 | 40.1 | 36.6 | 32 | ||||
| KM 400 T | 4 | 3 | 3.8 | 6.6 | 47 | 47 | 46.2 | 44.8 | 42.5 | 39.1 | 35.2 | ||||
| KM 550 T | 5.5 | 4 | 5.4 | 9.4 | 56.5 | 56.5 | 56.5 | 56 | 54.5 | 51.8 | 47.9 | 42.5 | |||

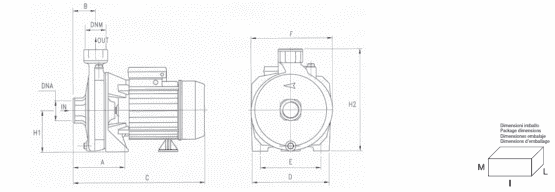

| TYPE | DIMENSIONS (mm) | CUBE | Kg | |||||||||||
| A | B | C | D | E | F | H1 | H2 | DNA | DNM | I | L | M | ||
| KM 400 | 108 | 54 | 425 | 240 | 190 | 250 | 133 | 323 | 2″ G | 1″ 1/4 G | 440 | 270 | 360 | 39.8 |
| KM 550 | 108 | 54 | 425 | 240 | 190 | 250 | 133 | 323 | 2″ G | 1″ 1/4 G | 440 | 270 | 360 | 39.8 |
