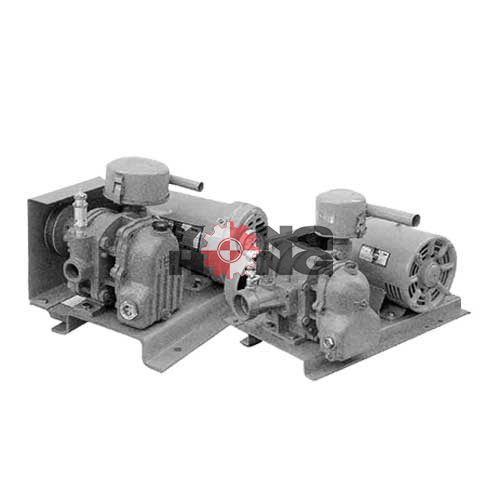

ทรีลูปโบลเวอร์ TAIKO TSA Series

MODEL BORE  SPEED DISCHARGE PRESSURE
9.8 14.7 19.6 24.5
min-1 0.10 kgf/cm 0.15kgf/cm 0.2 kgf/cm 0.25 kgf/cm
Q L Q L Q L Q L
TSA-40 1 1/2 B (40A) 1000 0.45 0.32 0.42 0.36 0.39 0.4 0.36 0.46
1250 0.65 0.4 0.62 0.45 0.59 0.5 0.56 0.58
1500 0.84 0.48 0.81 0.54 0.78 0.6 0.75 0.69
1750 1.04 0.56 1.01 0.63 0.98 0.7 0.95 0.81
TSA-50 2B (50A) 1000 0.82 0.64 0.78 0.72 0.73 0.8 0.69 0.92
1250 1.22 0.8 1.18 0.9 1.13 1 1.09 1.15
1500 1.61 0.96 1.57 1.08 1.52 1.2 1.48 1.38
1750 2.01 1.12 1.97 1.23 1.92 1.4 1.88 1.61
TSA-65 2 1/2 B (65A) 1000 1.19 0.8 1.07 0.9 0.94 1 0.85 1.15
1250 1.69 1 1.57 1.13 1.45 1.25 1.36 1.44
1500 2.18 1.2 2.06 1.35 1.93 1.5 1.84 1.73
1750 2.68 1.4 2.56 1.58 2.43 1.75 2.34 2.02
MODEL BORE  SPEED DISCHARGE PRESSURE
29.4 34.3 39.2 44.1 49
min-1 0.3 kgf/cm 0.35 kgf/cm 0.4 kgf/cm 0.45kgf/cm 0.5 kgf/cm
Q L Q L Q L Q L Q L
TSA-40 1 1/2 B (40A) 1000 0.33 0.52
1250 0.53 0.65 0.51 0.73 0.48 0.8 0.46 0.9 0.43 0.99
1500 0.72 0.78 0.7 0.87 0.67 0.96 0.65 1.07 0.62 1.18
1750 0.92 0.91 0.9 1.01 0.87 1.11 0.85 1.25 0.82 1.38
TSA-50 2B (50A) 1000 0.65 1.04 0.61 1.16 0.57 1.28
1250 1.05 1.3 1.01 1.45 0.97 1.6 0.93 1.79 0.89 1.97
1500 1.44 1.56 1.4 1.74 1.36 1.92 1.32 2.14 1.28 2.36
1750 1.84 1.82 1.8 2.02 1.76 2.22 1.72 2.49 1.68 2.76
TSA-65 2 1/2 B (65A) 1000 0.75 1.3 0.67 1.45 0.59 1.6
1250 0.26 1.63 1.18 1.82 1.1 2 1.05 2.23 0.99 2.45
1500 1.74 1.95 1.66 2.18 1.58 2.4 1.53 2.68 1.47 2.95
1750 2.24 2.28 2.16 2.53 2.08 2.78 2.03 3.12 1.97 3.45
