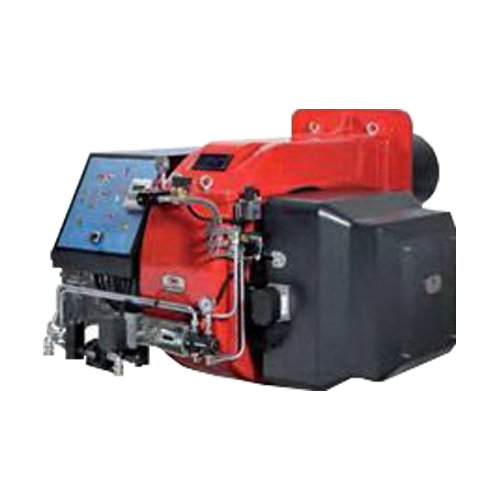

เครื่องพ่นไฟ C I B Unigas MILLE RG1030 RG1040 เป็นเครื่องพ่นไฟที่ใช้งานน้ำมันเบา เหมาะสำหรับงานอุตสาหกรรมที่ต้องการความร้อนสูง ตัวเครื่องผลิตจากวัสดุคุณภาพดี ทนทาน ใช้งานได้ยาวนาน มาพร้อมระบบควบคุมอิเล็กทรอนิกส์ ช่วยให้ใช้งานง่าย ปลอดภัย และแม่นยำ
| Burner type | Model | Power [min, kW] | Power [max, kW] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Pump motor [kW] | Power supply [aux, kW] | Protection class IP |
| RG1030 | G-.PR.S.xx.A | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.PR.L.xx.A | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.MD.S.xx.A | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.MD.L.xx.A | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.PR.S.xx.A.EA | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.PR.L.xx.A.EA | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.MD.S.xx.A.EA | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.MD.L.xx.A.EA | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.MD.S.xx.A.ES | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1030 | G-.MD.L.xx.A.ES | 2550 | 10600 | 215 | 894 | 400 | 3Nac 50 | 26.5 | 22 | 4 | 0.5 | IP40 |
| RG1040 | G-.PR.S.xx.A | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.PR.L.xx.A | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.MD.S.xx.A | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.MD.L.xx.A | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.PR.S.xx.A.EA | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.PR.L.xx.A.EA | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.MD.S.xx.A.EA | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.MD.L.xx.A.EA | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.MD.S.xx.A.ES | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
| RG1040 | G-.MD.L.xx.A.ES | 2550 | 13000 | 215 | 1096 | 400 | 3Nac 50 | 36 | 30 | 5.5 | 0.5 | IP40 |
