ขาแขวนรอก HITACHI ET-ST-BC-BP series

HITACHI ET- ST-BC- BP series BC series Chain driven trolley is suitable for relatively heavy loads not transported a long distance. BP series Manual driven trolley is suitable for relatively light loads transported a short distance. ET series This can be combined with a 4-point or 6-point pushbutton and used as a motorized trolley or overhead traveling crane. ST series This can be combined with a 4-point or 6-point pushbutton and used as a motorized trolley or overhead traveling crane.

Facebook
Twitter
Email
Print

ขาแขวนรอก HITACHI ET- ST-BC- BP series

  • BC series Chain driven trolley is suitable for relatively heavy loads not transported a long distance.
  • BP series Manual driven trolley is suitable for relatively light loads transported a short distance.

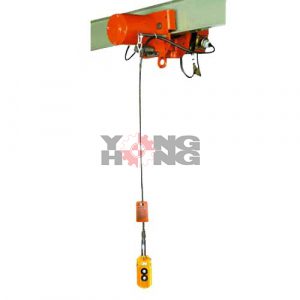

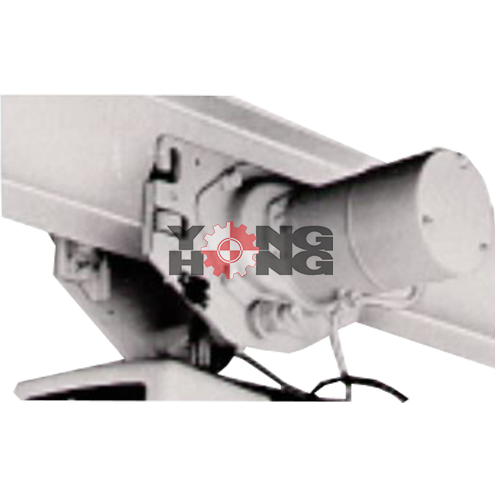

  • ET series This can be combined with a 4-point or 6-point pushbutton and used as a motorized trolley or overhead traveling crane.
  • ST series This can be combined with a 4-point or 6-point pushbutton and used as a motorized trolley or overhead traveling crane.



SPECIFICATIONS DATA

Motor Trolley
Series Name ET series ST series
Model Name 1ET 2ET 3ET 5ET 1ST 2ST 3ST
Working Load Limit (kg) 1000 2000 3000 5000 1000 2000 3000
Traveling Speed (kW) 50Hz 10.5(21) 10.5
Motor Output(kW) 50Hz 0.14(0.27) 0.3(0.6) 0.07 0.14 0.2
Applicable Beam width (mm) 75 ~ 125 100 ~ 150 125 ~ 175 75 ~ 125 100 ~ 150
Pendant Controller on off up down left right up down left right
Control Voltage 24 – 27V
Rating 25% ED 25% ED



Chain Trolley Push Trolley
Series Name BC series BP series
Model Name 1BC(H) 2BC(H) 3BC 5BC 1BP 2BP
Working Load Limit 1t 2t 3t 5t 1t 2t
Standard Lift (m) 3 · 6 3 · 6 6 6
Min. Curve radius(m) 1.2 1.5 1.5 2.4 1.2 1.5
Applicable Beam width (mm) 75 100 100 125 75 100
100 125 125 150 100 125
125 150 150 175 125 150
