ปั๊มน้ำหอยโข่ง Foras รุ่น KM 45-100 ตัวปั๊มทำจากเหล็กหล่อคุณภาพสูง ป้องกันสนิม ใบพัดผลิตจากทองเหลืองไม่เป็นสนิม เหมาะกับการใช้งานที่หลากหลาย สินค้ามีความทนทานในการใช้งาน
การประยุกต์ใช้งาน
คุณสมบัติ
ระบบไฟ
มอเตอร์
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa (KM45-50) |
| ghisa o alluminio (KMBO-100) | |
| Motor bracket | cast iron (KM45-50) |
| cast iron or aluminium (KMBO-100) | |
| Soporte motor | fundicion (KM45-50) |
| fundicion o aluminio (KMB0-100) | |
| Support moteur | fonte (KM45-50) |
| fonte ou aluminium (KMBO-100) | |
| Girante | Noryl® o ottone |
| Impeller | Noryl® or brass |
| Rodete | Noryl® o laton |
| Turbine | Noryl® ou laiton |
| Tenuta meccanica | ceramica-grafite |
| Mechanical seal | ceramic-graphite |
| Sello mecanico | ceramica-grafito |
| Garniture mecanique | ceramique-graphite |
| Albero motore | aciero AISI 416 |
| Motor shaft | stainless steel AISI 416 |
| Eje motor | acero AISI 416 |
| Arbre moteur | acier AISI 416 |
| Temperatura del liquido | girante Noryl®o support aluminium: 0-50 °C |
| girante ottone: 0-90°C | |
| Liquid temperature | Noryl® impeller or aluminium bracket: 0-50 °C |
| brass impeller: 0-90°C | |
| Temperatura del liquido | rodete Noryl®o soporte aluminio: 0-50°C |
| rodete laton: 0-90°C | |
| Temperature du liquide | turbine e Noryl® o soporte aluminio: 0-50°C |
| turbine laton: 0-90°C | |
| Pressione di esercizio | |
| Operating pressure | max 6 bar |
| Presion de trabajo | |
| Pression de fonctionnement | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | 3- 230/400V-50Hz |
| 2 pole induction motor | 1-230V-50Hz con termoprotettore |
| Motor de 2 polos a inducción | with thermal protection |
| con proteccion termica | |
| Moteur a induction a 2 poles | avec protection thermique |
| Classe di isolamento | |
| Insulation class | F |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | |
| Protection degree | IP44 |
| Grado de proteccion | |
| Protection | |

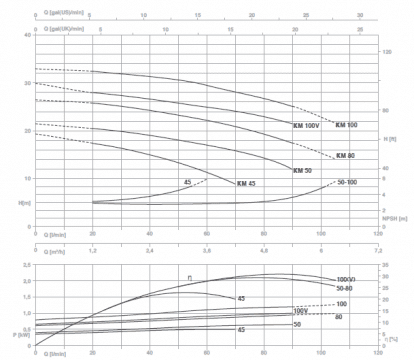

| Type | P2 | P1 (kW) | AMPERE | Q (m3/h – l/min) | ||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 1.2 | 2.4 | 3.6 | 4.2 | 4.8 | 5.4 | ||||
| HP | kW | 1~ | 3~ | 1x230V 50 Hz | 3x400V 50 Hz | 0 | 20 | 40 | 60 | 70 | 80 | 90 | ||
| H(m) | ||||||||||||||
| KM 45 | KM 45 T | 0.4 | 0.3 | 0.51 | 0.56 | 2.3 | 1 | 19.3 | 17.4 | 15 | 11.3 | 8.9 | ||
| KM 50 | KM 50 T | 0.5 | 0.37 | 0.59 | 0.65 | 2.8 | 1.1 | 21.5 | 20.5 | 19 | 17 | 15.8 | 15 | 12 |
| KM 80 | KM 80 T | 0.8 | 0.59 | 0.9 | 0.94 | 4.5 | 1.7 | 26.5 | 25.8 | 24.5 | 22.2 | 20.9 | 19.5 | 17.5 |
| KM 100V | KM 100V T | 1 | 0.74 | 1.05 | 4.6 | 30 | 28 | 26.6 | 25 | 24.1 | 23 | 21.5 | ||
| KM 100 | KM 100 T | 1 | 0.74 | 1.16 | 1.17 | 5.7 | 2 | 33 | 32.5 | 31.5 | 29.6 | 28.3 | 26.8 | 25.2 |

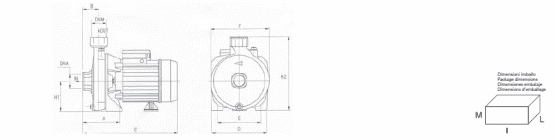

| TYPE | DIMENSIONS (mm) | CUBE | Kg | |||||||||||
| A | B | C | D | E | F | H1 | H2 | DNA | DNM | I | L | M | ||
| KM 45 | 95 | 45.5 | 265 | 150 | 110 | 160 | 82 | 202 | 1″ G | 1″ G | 290 | 175 | 225 | 8.5 |
| KM 50 | 95 | 45.5 | 265 | 150 | 110 | 160 | 82 | 202 | 1″ G | 1″ G | 290 | 175 | 225 | 9 |
| KM 80 | 110 | 46.5 | 300 | 180 | 140 | 185 | 97 | 234 | 1″ G | 1″ G | 325 | 200 | 265 | 12.7 |
| KM 100V | 110 | 46.5 | 300 | 180 | 140 | 185 | 97 | 234 | 1″ G | 1″ G | 325 | 200 | 265 | 13.5 |
| KM 100 | 110 | 46.5 | 300 | 180 | 140 | 185 | 97 | 234 | 1″ G | 1″ G | 325 | 200 | 265 | 14 |
