ปั๊มน้ำหอยโข่ง Foras รุ่น SD เป็นปั๊มหอยโข่งชนิดใบพัดเดี่ยว ขนาดท่อเข้า 2-4 นิ้ว ขนาดมอเตอร์ 1-5.5 แรงม้า สามารถส่งน้ำได้สูงสุด 18-7.5 เมตร อัตราการไหลของน้ำ 300 – 1000 ลิตร/นาที ไฟ 1 เฟส/3 เฟส
คุณสมบัติ ปั๊มน้ำหอยโข่ง
การประยุกต์ใช้งาน
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa |
| Motor bracket | cast iron |
| Soporte motor | fundicion |
| Support moteur | fonte |
| Girante | ghisa / ottone (SBD) |
| Impeller | cast iron / brass |
| Rodete | fundicion / laton |
| Turbine | fonte / laiton |
| Tenuta meccanica | ceramica-grafite |
| Mechanical seal | ceramic-graphite |
| Sello mecanico | ceramica-grafito |
| Garniture mecanique | ceramique-graphite |
| Albero motore | acciaio AISI 303 |
| acciaio AISI 416 (SD 80-100) | |
| Motor shaft | stainless steel AISI 303 |
| stainless steel AISI 416 (SD 80-100) | |
| Eje motor | acero AISI 303 |
| acero AISI 416 (SD 80-100) | |
| Arbre moteur | acier AISI 303 |
| acier AISI 416 (SD 80-100) | |
| Temperatura del liquido | |
| Liquid temperature | 0 – 90 °C |
| Temperatura del liquido | |
| Temperature du liquide | |
| Pressione di esercizio | |
| Operating pressure | max 6 bar |
| Presion de trabajo | |
| Pression de fonctionnement | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | 3- 230/400V-50Hz |
| 1-230V-50Hz | |
| 2 pole induction motor | con termoprotettore |
| Motor de 2 polos a induccion | with thermal protection |
| con proteccion termica | |
| Moteur a induction a 2 poles | avec protection thermique |
| Classe di isolamento | |
| Insulation class | F |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | |
| Protection degree | IP44 |
| Grado de protección | |
| Protection | |

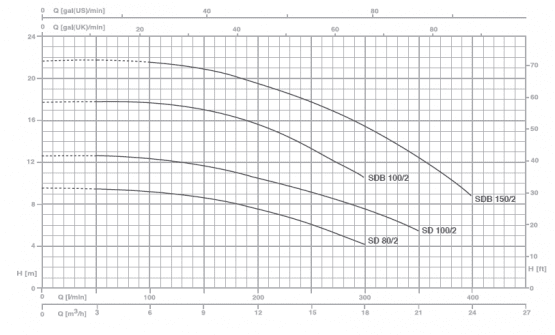

| TYPE | P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | ||||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | ||||
| 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | ||||||||||
| SD 80/2 | SD 80/2 T | 0.8 | 0.59 | 0.63 | 0.7 | 2.9 | 1.3 | 9.5 | 9.4 | 9.2 | 8.5 | 7.3 | 6 | 4.2 | ||
| SD 100/2 | SD 100/2 T | 1 | 0.74 | 0.92 | 1.05 | 4.3 | 2.3 | 12.6 | 12.5 | 12.3 | 11.5 | 10.3 | 9.3 | 7.5 | 5.5 | |
| SDB 100/2 | SDB 100/2 T | 1 | 0.74 | 1.23 | 6 | 17.5 | 17.5 | 17.5 | 16.7 | 15.2 | 13.2 | 10.5 | ||||
| SDB 150/2 | SDB 150/2 T | 1.5 | 1.1 | 1.78 | 1.65 | 8.5 | 3 | 21.5 | 21.5 | 21.5 | 20.6 | 19.2 | 17.5 | 15.3 | 12.3 | 8.8 |

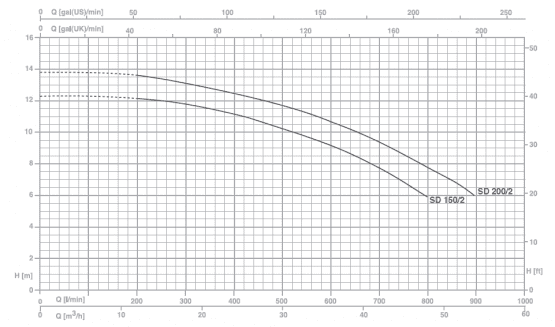

| TYPE | P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | |||||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | ||||
| 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | |||||||||||
| SD 150/2 | SD 150/2 T | 1.5 | 1.1 | 1.85 | 1.8 | 8.8 | 3.3 | 12.3 | 12.3 | 12.2 | 11.8 | 11 | 10.2 | 9.1 | 7.7 | 6 | |
| SD 200/2 | SD 200/2 T | 2 | 1.5 | 2.1 | 2.1 | 10 | 3.9 | 13.8 | 13.8 | 13.6 | 13.1 | 12.4 | 11.6 | 10.6 | 9.4 | 7.8 | 6 |
| TYPE | P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | |||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 15 | 24 | 36 | 48 | 60 | ||||
| 0 | 100 | 200 | 300 | 400 | 500 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | |||||||
| SD 200/3 | SD 200/3 T | 2 | 1.5 | 2.35 | 2.15 | 11 | 3.6 | 14.2 | 14.2 | 13.8 | 11.7 | 7.8 | |
| SD 300/3 | SD 300/3 T | 3 | 2.2 | 3.3 | 2.9 | 15 | 4.9 | 17.5 | 17.5 | 17.2 | 15.3 | 12.3 | 7.5 |
| SD 400/3 T | 4 | 3 | 4 | 6.7 | 21.5 | 21.5 | 21.4 | 19.9 | 17.7 | 13.5 | |||

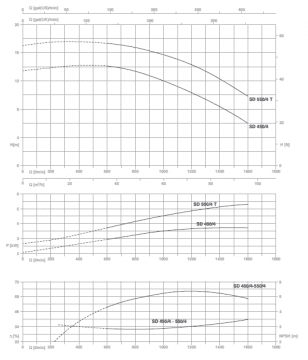

| TYPE | P2 | P1 (kW) | AMPERE | Q (m3/h-l/min) | ||||||||||
| 1~ | 3~ | 1~ | 3~ | 0 | 36 | 48 | 60 | 72 | 84 | 96 | ||||
| 0 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | ||||||||
| (HP) | (kW) | 1~ | 3~ | 1×230 V (50 Hz) | 3×400 V (50 Hz) | H (m) | ||||||||
| SD 450/4 | SD 450/4 T | 4 | 3 | 3.7 | 3.6 | 18 | 6.2 | 13.5 | 14.1 | 13.4 | 12.1 | 10.3 | 8.3 | 6.1 |
| SD 500/4 T | 5.5 | 4 | 5.05 | 8.8 | 17 | 17.3 | 16.8 | 15.7 | 14.4 | 12.2 | 10 | |||

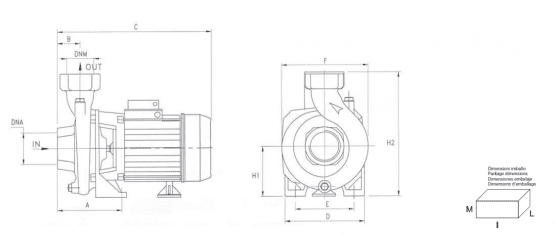

| TYPE | DIMENSIONS(mm) | CUBE | Kg | |||||||||||
| A | B | C | D | E | F | H1 | H2 | DNA | DNM | I | L | M | ||
| SD 80/2 | 127 | 45 | 315 | 155 | 115 | 178 | 97 | 247 | 2” G | 2” G | 340 | 195 | 280 | 14.2 |
| SD 100/2 | 127 | 45 | 315 | 155 | 115 | 178 | 97 | 247 | 2” G | 2” G | 340 | 195 | 280 | 15.5 |
| SD 150/2 | 150 | 53 | 370 | 180 | 140 | 218 | 115 | 285 | 2” G | 2” G | 390 | 230 | 325 | 23.3 |
| SD 200/2 | 150 | 53 | 370 | 180 | 130 | 218 | 115 | 285 | 2” G | 2” G | 390 | 230 | 325 | 24.3 |
| SDB 100/2 | 130 | 70 | 365 | 180 | 130 | 195 | 90 | 240 | 2” G | 2” G | 390 | 230 | 325 | 18.2 |
| SDB 150/2 | 130 | 70 | 365 | 200 | 140 | 195 | 90 | 240 | 2” G | 2” G | 390 | 230 | 325 | 19.1 |
| SD 200/3 | 176.5 | 80 | 455 | 200 | 140 | 225 | 112 | 292 | 3” G | 3” G | 480 | 245 | 330 | 28.3 |
| SD 300/3 | 176.5 | 80 | 455 | 200 | 140 | 225 | 112 | 292 | 3” G | 3” G | 480 | 245 | 330 | 31.5 |
| SD 400/3 T | 176.5 | 80 | 455 | 200 | 140 | 225 | 112 | 292 | 3” G | 3” G | 480 | 245 | 330 | 31.6 |
| SD 450/4 T | 165 | 85 | 480 | 220 | 160 | 250 | 130 | 330 | 4” G | 4” G | 510 | 275 | 365 | 41.1 |
| SD 550/4 T | 165 | 85 | 480 | 220 | 160 | 250 | 130 | 330 | 4” G | 4” G | 510 | 275 | 365 | 41.1 |
