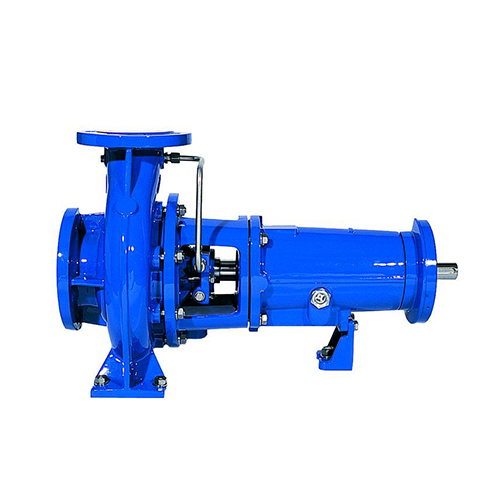

ปั๊มหอยโข่ง LOWARA Vogel series

ปั๊มหอยโข่ง LOWARA Vogel series

MPE

SPECIAL DESIGN FEATURES INCLUDING

• Horizontal in-between bearing design, with stiff shaft for lowest shaft deflection.
• Efficiency optimized closed impellers and diffusers avoid radial loads and minimize shaft loads and shaft deflection.
• Thrust balancing by balancing drum with pressure balancing at the discharge side shaft seal considerably reduces the loads on pump bearings and shaft seals.
• Rigid construction with pump feet integrated to pump casing ensures deform-less transmission of pipework loads into foundation.
• Suction- and discharge casing executed with „universal“ casing feet for easy change of flange directions.
• Thermal expansion of the pump rotor is balanced internally by a floating bearing at suction side, without affecting the shaft alignment.
• Maintenance friendly design enables the change of bearings and shaft seals without pump disassembly.

SPECIFICATION

• Flow: up to 300 m³/h
• Head: up to 850 m
• Power supply: Three phase
• Max working pressure: 100 bar
• Max liquid temperature: 140 °C

MP, MPA, MPB, MPV

MP and MPA – Horizontal multistage pump with bearings on both ends.

MPB and MPV – Vertical multistage pump.

SPECIFICATIONS

• Delivery: up to 340 m³/h
• Head: up to 500 m
• Power supply: three-phase 50 and 60 Hz
• Maximum operating pressure: 55 bar
• Temperature of pumped liquid: to 140 °C

P, PVa

Multistage Pumps – P, PVa
P – Horizontal multistage pump with bearings on both ends.

PVa – Vertical multistage pump.

SPECIFICATIONS

• Delivery: up to 200 m³/h
• Head: up to 300 m
• Power supply: three-phase
• Maximum operating pressure: 45 bar
• Temperature of pumped liquid: to 140 °C
