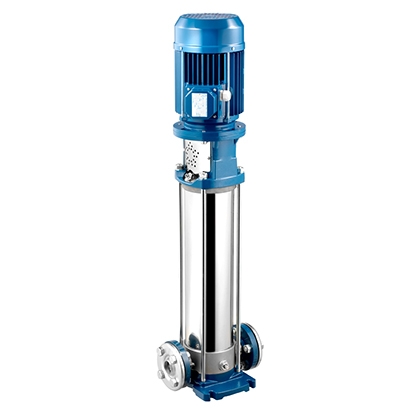

ปั๊มน้ำ Foras รุ่น Plus-LG เป็นปั๊มน้ำแบบทรงตั้งแบบหลายขั้นตอน แรงดัน 4 บาร์ ใช้ในน้ำ -5 ถึง 35 องศา
การประยุกต์การใช้งาน
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa |
| Motor bracket | cast iron |
| Soporte motor | fundicion |
| Support moteur | fonte |
| Girante, diffusore | Noryl® |
| Impeller,diffuser | |
| Rodete, diffusore | |
| Turbine ,diffuser | |
| Tenuta meccanica | ceramica-grafite ≤ 6 giranti |
| grafite-carburo di silico ≥ 7 giranti | |
| Mechanical seal | ceramica-grafite ≤ 6 impellers |
| graphite-silico carbide ≤ 7 impellers | |
| Sello mecanico | ceramica-grafito ≤ 6 rodetes |
| grafite-carburo de silicio ≥ 7 rodetes | |
| Garniture mecanique | ceramique-graphite ≤ 6 turbines |
| grafite-carbure de silicium ≥ 7 turbines | |
| Albero motore | acciaio cromo-nickel AISI 303 |
| Motor shaft | stainless steel AISI 303 |
| Eje motor | acero cromo-nickel AISI 303 |
| Arbre moteur | acier cromo-nickel AISI 303 |
| Cuscinetto Intermedio gulda albero | ceramica-carburo a tungsteno |
| Intermediate shaft guiding stage bush | ceramic tungsten carbide |
| Cojinete Intermedio guis-eje | ceramica-carburo de tungsteno |
| Douilles etage de guidage Intermediarle | ceramique-carbure de tungstone |
| Temperatura del liquido | max 40 ˚C |
| Liquid temperature | |
| Temperatura del liquido | |
| Temperature du liquide | |
| Temperatura del liquido | -5 – +35 °C |
| Liquid temperature | |
| Temperatura del liquido | |
| Temperature du liquide | |
| Pressione di esercizio | 14 bar |
| Operating pressure | |
| Presion de trabajo | |
| Pression de fonctionnement | |
| Guarnizione corpo pompa | EPDM |
| Pump body gasket | |
| Guarniciones cuerpo bomba | |
| Joint corps de pompe | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | 3- 230/400V-50Hz |
| 2 pole induction motor | |
| Motor de 2 polos a induccion | |
| Moteur a induction a 2 poles | |
| Classe di isolamento | F |
| Insulation class | |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | IP44 |
| Protection degree | |
| Grado de proteccion | |
| Protection | |
